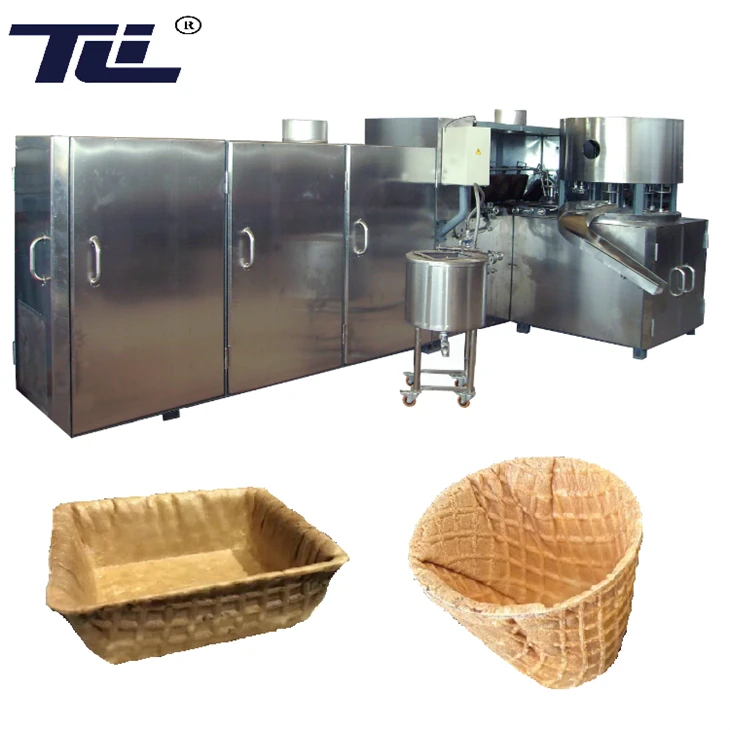

Waffle Cup Making Machine

Waffle Cup Making Machine

The waffle cup making machine can make different shapes of waffle cups, waffle bowls and waffle baskets. This model has 65 pieces of baking plates and the capacity is from 2000 to 3000pcs/hour. The ice cream waffle cup maker is heating by natural gas or liquid gas. The burners can be used for both gas. The waffles are used in the ice cream factory, restaurant, milk tea shop and also ice cream shop or cart. The machine is driven by the servo motors with Delta brand.
Send Inquiry
Description
Technical Parameter



Model

TH65W

Drive motor

380V, 1.5Kw

Air blower

380V, 1.6Kw

Gas consumption

6-10kg/h

Baking plate size

210*240mm

Capacity

2000-3000/hour

Baking plate quantity

65pieces

Machine measurement

7800*2400*1750mm

Total weight

6000kg

Baking plate material

QT#600

Control panel brand

Delta

Air blower brand

Germany Goorui

Bearing brand

Germany FAG

Sensor

Japanese Sunx

Hi temperature grease

Germany KLUBER



Factory Visitors



2



Customers' Factory



3



advantages of automatic waffle cup machine

Here are some of the main advantages of using an automatic ice cream waffle cup machine:

1. Efficiency: with these machines, you can produce a large number of waffle cups quickly and easily. Our different models can make it from 1000 to 6000pcs/hour.We have single plate and double plates models according to the cup size.You can choose the suitable model according to your requirements.



2. Consistency: automatic ice cream waffle cup machines are also great at producing consistent, high-quality waffle cups every time. With manual production,it can lead to inconsistencies in the size and shape of the cups because the operator can not move completely the same every time. However, you can ensure that every cup is the same size and shape with automatic machine as it is controlled by servo motors.



3. Customization:using an automatic ice cream waffle cup machine allows you to customize the waffle cups. You can add various flavors, colors, and designs to your cups to make them unique and more appealing.Also you can make different shapes such as bowl,tray,mini cup and so on.

4. Easy to use: automatic ice cream waffle cup machines are easy to use. Most machines come with simple controls and require very little training to operate. This can help you save time and money on the labor cost.



5.Energy saving:our automatic machine is using the gas to bake and the baking oven doors are made of insulation materials.This can effectively maintain insulation to save the gas.For manual machine,it is heating by electricity which is not economical and practical.

6.Flexible change:if the product shape is not popular after some time,you can change the forming molds easily to another shape.Also we can install different shapes on the forming system from the beginning.

product-460-460product-339-240product-287-275

product-421-349product-406-227product-539-421
