Ice Cream Cone Baker

Name: China Ice Cream Cone Baker Manufacturers Factory - Customized Ice Cream Cone Baker Price - Tengli Machinery
Brand: Tengli
SKU: 241831941

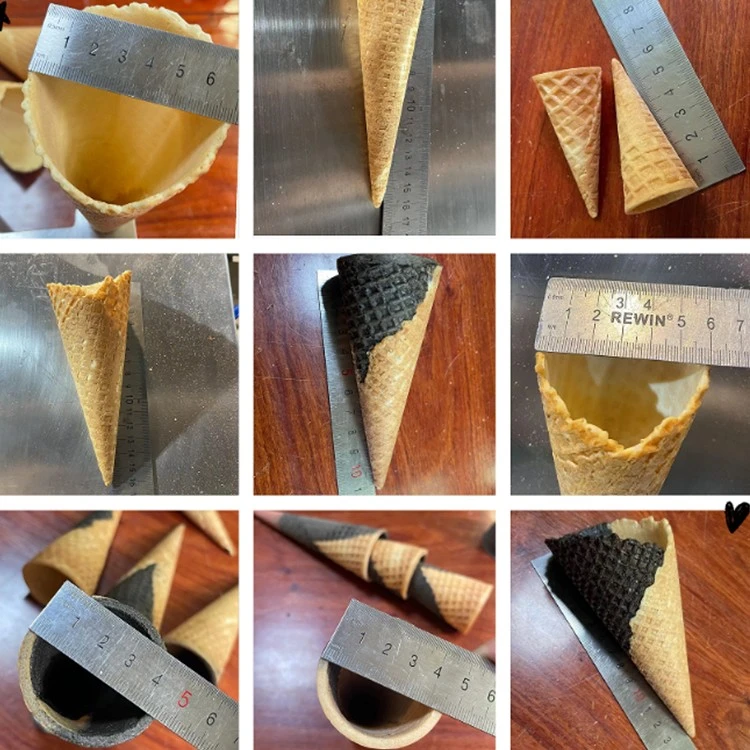

This ice cream cone baker is our max. model which can make the cones with capacity from 10500 to 12000pcs/hour for the cones from 100 to 140mm long.
It is driven by 3phase power with 380V or 220V and the baking oven is heating with gas(piped natural gas or liquid gas). Our ice cream cone production line has the advantages of high production efficiency, simple operation, safety and health, stable quality and so on.

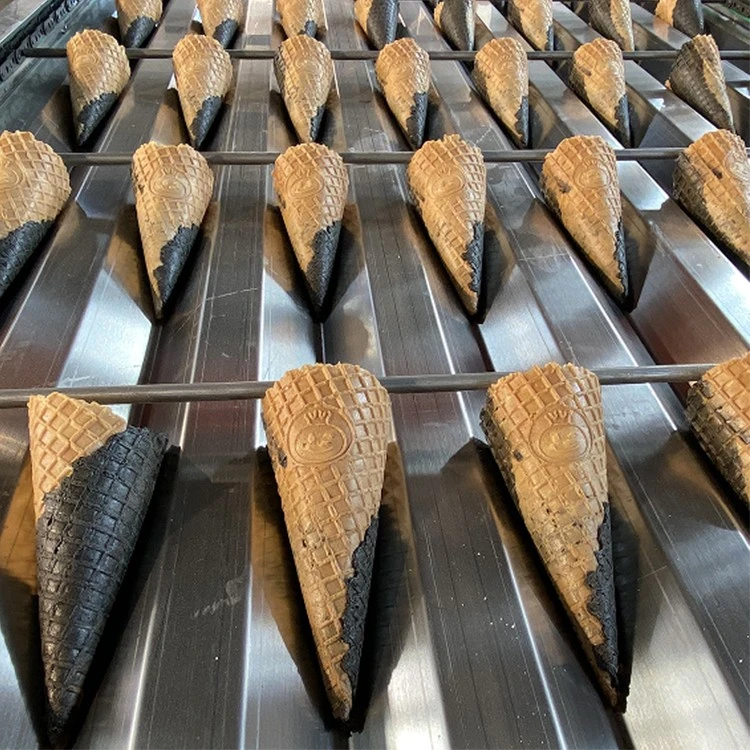

The machine can make cones with two colors or three colors with the extra pumping system.And we can make the logo on the baking plates as customer required.
The whole machine is driven by servo motor system with 6 servo motors.

Send Inquiry

Description

Guangdong Tengli Machinery Equipment Co., Ltd. is one of the leading manufacturers and suppliers of ice cream cone baker in China, also supports customized service. Welcome to wholesale cheap ice cream cone baker made in China here from our factory. Quality products and reasonable price are available.

Technical Parameter

Model	TH117X2-40A
Drive motor	380V, 3.0Kw
Rolling motor	380V, 0.2Kw
Air blower	380V, 3.0Kw
Gas consumption	15-22kg/h
Baking plate size	280240mm/ 320240mm
Capacity	10500-12000/hour
Cone length	≤120mm/≤140mm
Baking plate quantity	117pieces
Rolling molds quantity	40pieces
Machine measurement	1720023001750mm/1940023001750mm
Total weight	12500kg/14000kg
Baking plate material	QT#600
Control panel brand	Delta
Air blower brand	Germany Goorui
Bearing brand	Germany FAG
Sensor	Japanese Sunx
Hi temperature grease	Germany KLUBER
Servo motor system brand	Delta
