Technical Parameter
|
Model |
TH53X2-20A |
|
Drive motor |
380V, 2.2Kw |
|
Rolling motor |
380V, 0.2Kw |
|
Air blower |
380V, 1.6Kw |
|
Gas consumption |
6-10kg/h |
|
Baking plate size |
280*240mm/ 320*240mm |
|
Capacity |
4500-6000/hour |
|
Cone length |
≤120mm/≤140mm |
|
Baking plate quantity |
53pieces |
|
Rolling molds quantity |
20pieces |
|
Machine measurement |
8300*2300*1750mm/9200*2300*1750mm |
|
Total weight |
6500kg/7200kg |
|
Baking plate material |
QT#600 |
|
Control panel brand |
Delta or Siemens |
|
Air blower brand |
Germany Goorui |
|
Bearing brand |
Germany FAG |
|
Sensor |
Japanese Sunx |
|
Hi temperature grease |
Germany KLUBER |
Machine Details
Batter injection: the batter pump will pump the mixed batter to the baking plates.
Baking plates: there are 45pieces of baking plates which are made of high quality ductile iron #QT600. There are two pieces of biscuit on each baking plate.
Control panel: It is easy-operation touch screen with display. The touch screen brand is DELTA .
Rolling molds: it rolls the cone from baked biscuit precisely. It has 16 sets of rolling molds. The rolling shell is made of brass which can be anti-friction.
Cooling conveyor: there are two cooling fans on the conveyor. It is made of #304 stainless steel and food grade PVC.
Metal detector: it can detect the metals and if there is, it will move it automatically.
Finished Product
Why Choose Us?
1. We are the No. one manufacturer in China and we have more than 80% local market share.
2. We already sold the ice cream cone maker machine to more than 40 countries such as Italy, Russia, India, Egypt, Iran, Mexico, Argentina, Dominica and so on.
3. Our ice cream cone production line top qualified with famous brand PLC and electrics such as Siemens, Omron.
4. We supply with good and fast after-sales services. We can send the engineer to install and debug the machine.
5. We also have the CE and other certificates.
Layout of The Machine

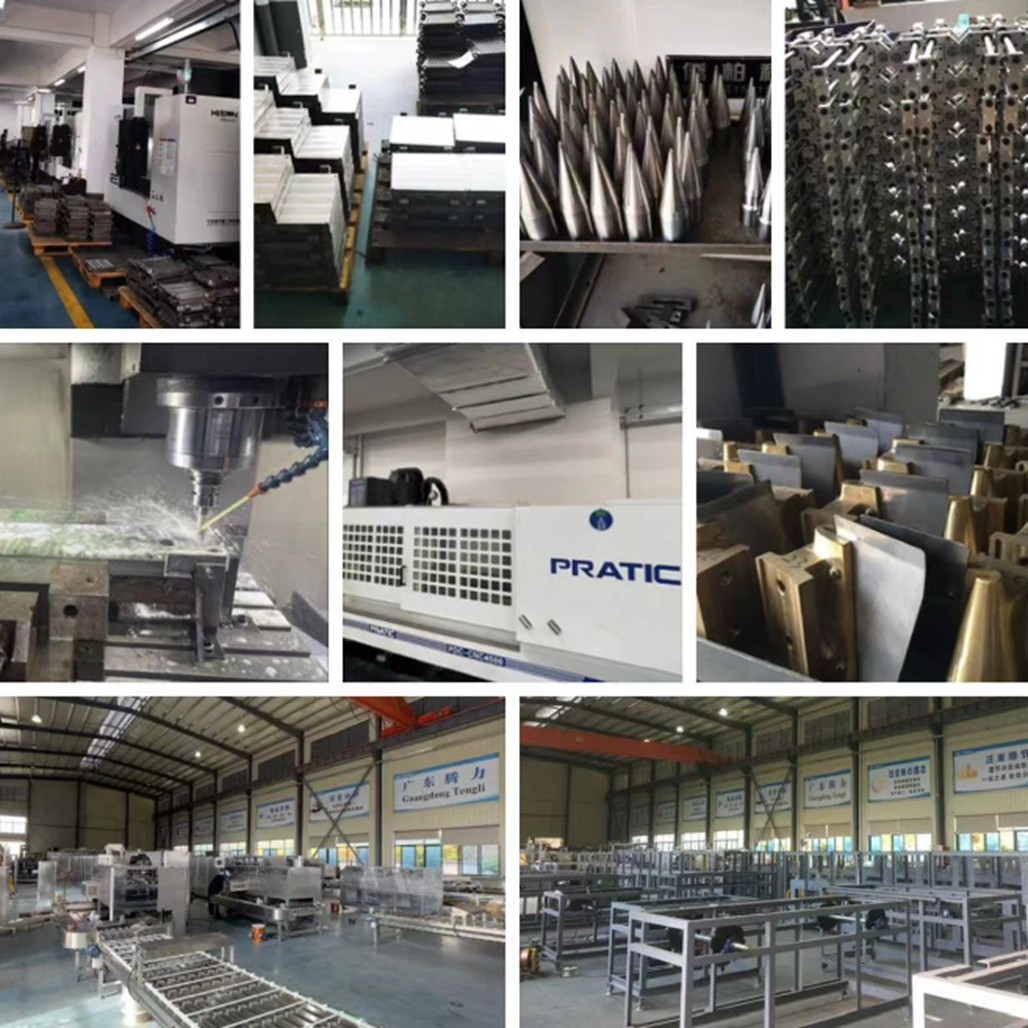

Our Workshop
We make more than 80% of the parts for our automatic ice cream sweet cone machine including the main parts such as baking plates, rolling molds, conveyors, fire pipes, body frame and so on. All the parts which will be touched with the products are made of stainless steel.
