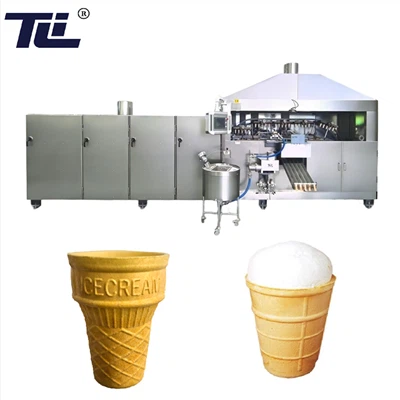

Automatic Waffle Cone Machine

This automatic waffle cone machine is making the waffle cones from 140mm to 160mm.The machine can make the waffle cones with two colors or three colors for different use. The ice cream cone maker machine is an intelligent and efficient mechanical equipment.The whole production line is including air compressor,mixer,batter tank,baking oven,forming station and conveyor.The optional devices are batter trolley with pumping system,metal detector,counter with stacking and paper sleeve dispenser.

Send Inquiry

Description

Technical Parameter

Model	TH35X2-16T
Drive motor	380V, 2.2Kw
Rolling motor	380V, 0.2Kw
Air blower	380V, 1.3Kw
Gas consumption	5-8kg/h
Baking plate size	360*240mm
Capacity	2000-3000/hour
Cone length	≤160mm
Baking plate quantity	35pieces
Rolling molds quantity	16pieces
Machine measurement	710023001750mm
Total weight	5700kg
Baking plate material	QT#600
Control panel brand	Delta
Air blower brand	Germany Goorui
Bearing brand	Germany FAG
Sensor	Japanese Sunx
Hi temperature grease	Germany KLUBER
Servo motor system	Delta

Finished Products

our factory

1. Our factory was built in 2007 with 3 shareholder,one is manager working as the sales and purchaser,one is engineer and one is responsible for after-sales services.

2. We have good experiences in design,improvement and after-sales services.

3. We have high producing capacity with about 50sets of machines for one year.This is the number 1 in China.

4.We make most of the parts of our machine ourselves to control the quality such as baking plates,main body frame,conveyor,mixer,rolling molds,doors and so on.

5.The factory covers an area over 8000 square meters and has a construction area over 11000 square meters.We have relocated our factory for 4 times because of the rapid business growth.Now we have office building with meeting room, reception room, finance department, sales department, technical department, export department, after-sales service department.
